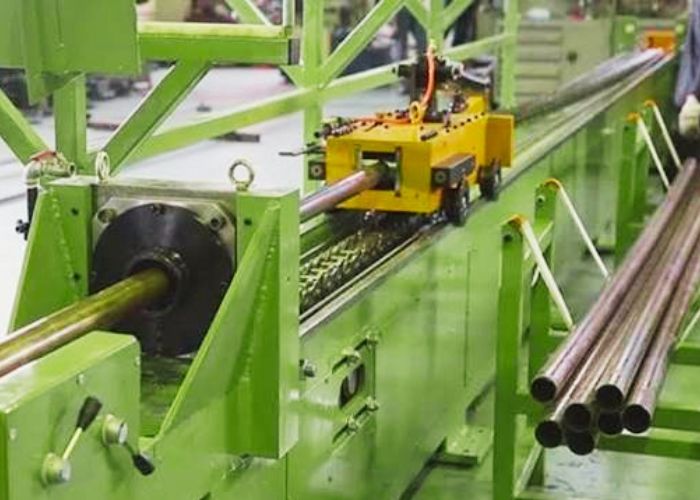

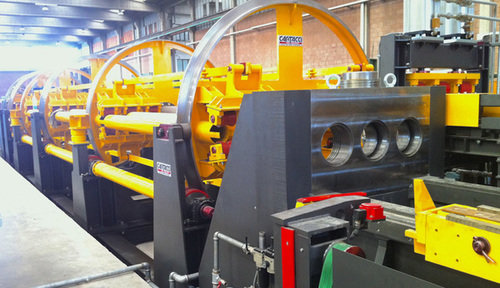

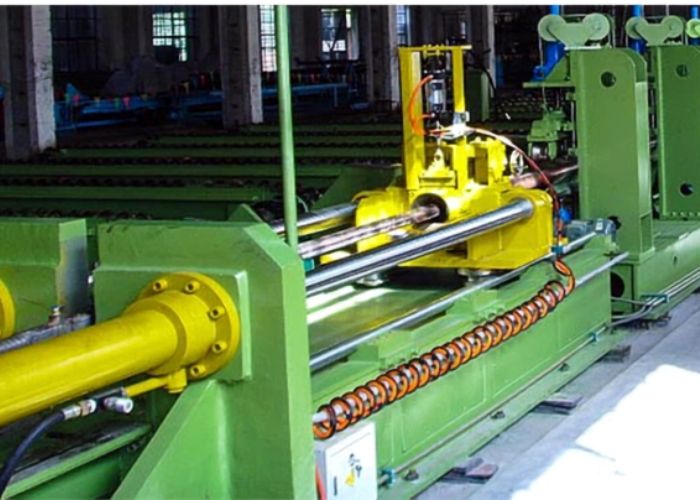

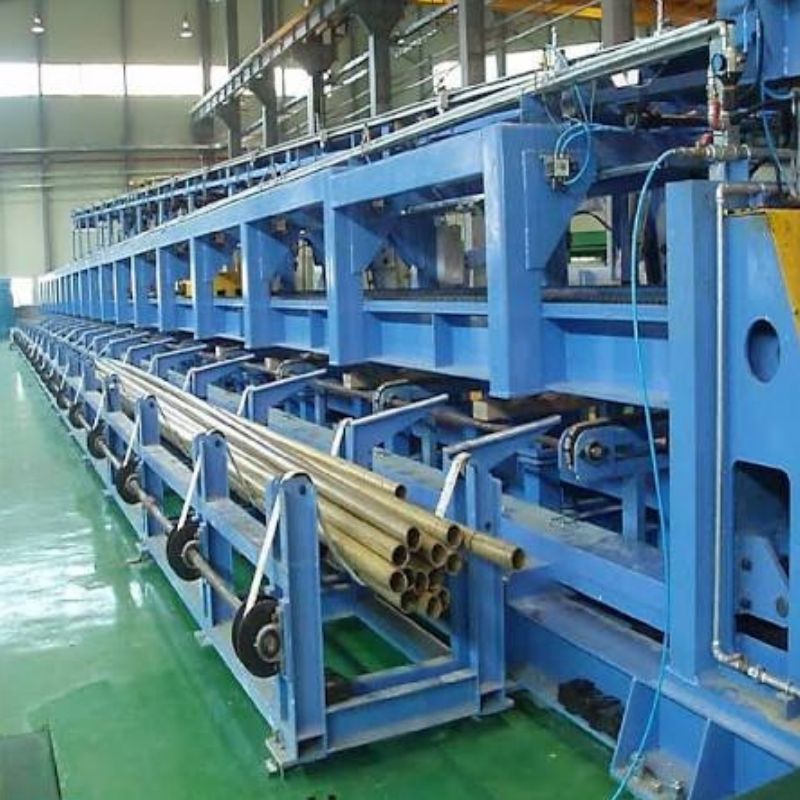

The Draw Bench Machine is a high-performance metal drawing system designed for reducing the diameter, improving dimensional accuracy, and enhancing the surface finish of seamless and welded tubes, pipes, rods, and bars. The machine delivers high precision, smooth operation, and excellent productivity, making it ideal for stainless steel, carbon steel, alloy steel, brass, copper, and aluminum tube manufacturing industries.

Our Draw Bench Machines are manufactured using premium-quality components, hydraulic technology, and advanced PLC automation to ensure reliable performance, high drawing force, and long service life. The machine can be customized according to tube diameter, drawing length, drawing force, and customer requirements.

Feature

• Fully Automatic PLC Based Control System
• Touch Screen HMI Operation
• Hydraulic Drawing System
• Heavy Duty Drawing Carriage
• Precision Die Holder Assembly
• Adjustable Drawing Speed
• Servo Controlled Operation
• Heavy Duty Steel Fabricated Frame
• Variable Frequency Drive (VFD) Speed Control
• Automatic Lubrication System
• High Drawing Accuracy
• Smooth & Damage-Free Material Handling
• Continuous Production Operation
• Emergency Stop & Safety Protection
• Low Noise & Low Maintenance
• Energy Efficient Design
• Easy Tool Replacement
• Custom Built as per Customer Requirement

Applications

• Stainless Steel Tube Manufacturing
• Seamless Tube Production
• Copper Tube Manufacturing
• Brass Tube Manufacturing
• Aluminum Tube Production
• Precision Tube Industries
• Automobile Components
• Heat Exchanger Tubes
• Instrumentation Tubes
• Engineering Industries

Optional Accessories

• Hydraulic Power Pack
• Automatic Tube Loader
• Roller Conveyor
• Die Holder Set
• Carbide Drawing Dies
• Lubrication System
• Touch Screen HMI
• Digital Length Counter
• Remote Monitoring System
• Safety Guard System

Advantages

• High Drawing Accuracy
• Excellent Surface Finish
• Increased Material Strength
• High Production Efficiency
• Heavy Duty Construction
• Long Service Life
• Low Maintenance Cost
• Easy Operation
• Energy Efficient
• Suitable for Continuous Production

Industries Served

• Tube Manufacturing
• Automobile Industry
• Heat Exchanger Industry
• Aerospace Industry
• Construction Industry
• Mechanical Engineering
• Industrial Fabrication
• Precision Engineering
• General Engineering Industries
