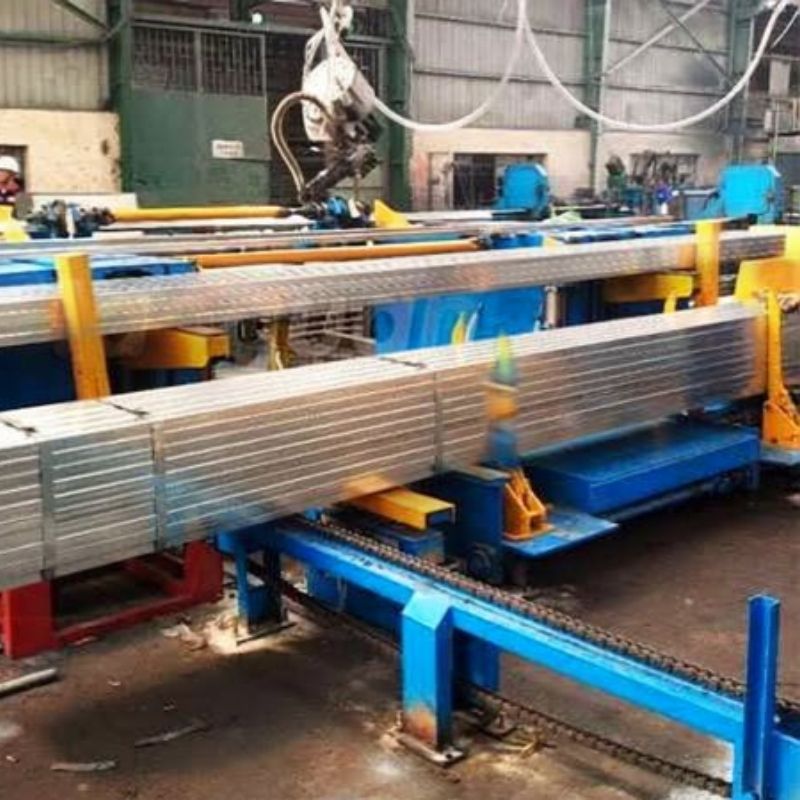

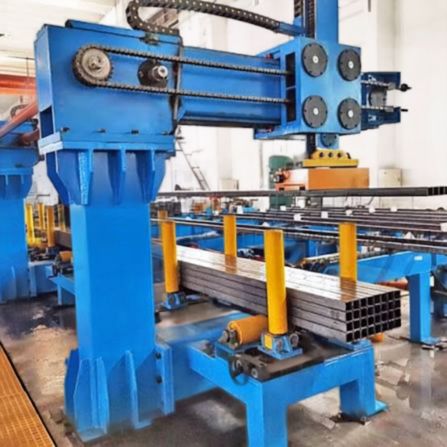

The Automatic Pipe Stacking Machine is a high-performance automated system designed for efficient collection, counting, alignment, and stacking of finished pipes directly from the production line. It eliminates manual handling, increases productivity, and ensures safe, damage-free stacking of pipes for storage and transportation.

Manufactured using premium quality components and advanced automation technology, our machine is suitable for ERW Tube Mills, MS Pipe Plants, Stainless Steel Tube Mills, GI Pipe Manufacturing Units, and Structural Tube Industries. The machine can be customized according to pipe diameter, length, production speed, and customer requirements.

Features

• Fully Automatic PLC Based Control System
• Touch Screen HMI Operation
• Automatic Pipe Collection & Alignment
• Automatic Pipe Counting System
• High-Speed Stacking Mechanism
• Servo Controlled Pipe Positioning
• Hydraulic/Pneumatic Pipe Lifting System
• Variable Frequency Drive (VFD) Speed Control
• Heavy Duty Fabricated Steel Structure
• Adjustable Pipe Length & Diameter Settings
• Damage-Free Pipe Handling
• Continuous Online Operation
• Emergency Stop & Safety Protection
• Low Noise & Low Maintenance
• Energy Efficient Design
• Easy Integration with Existing Tube Mill Line
• Custom Built as per Customer Requirement

Applications

• ERW Tube Mill Plants
• MS Pipe Manufacturing Industries
• Stainless Steel Tube Mills
• GI Pipe Manufacturing Units
• Structural Pipe Production
• Furniture Pipe Industries
• Automobile Tube Manufacturing
• Construction Pipe Plants
• Industrial Pipe Production
• Steel Processing Industries

Optional Accessories

• Automatic Bundle Counting System
• Roller Conveyor
• Chain Conveyor
• Hydraulic Pipe Transfer System
• Pneumatic Pipe Separator
• Servo Positioning Unit

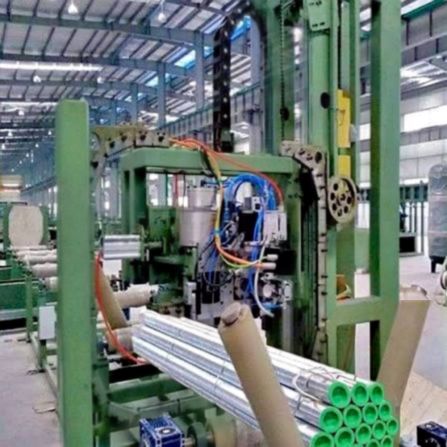

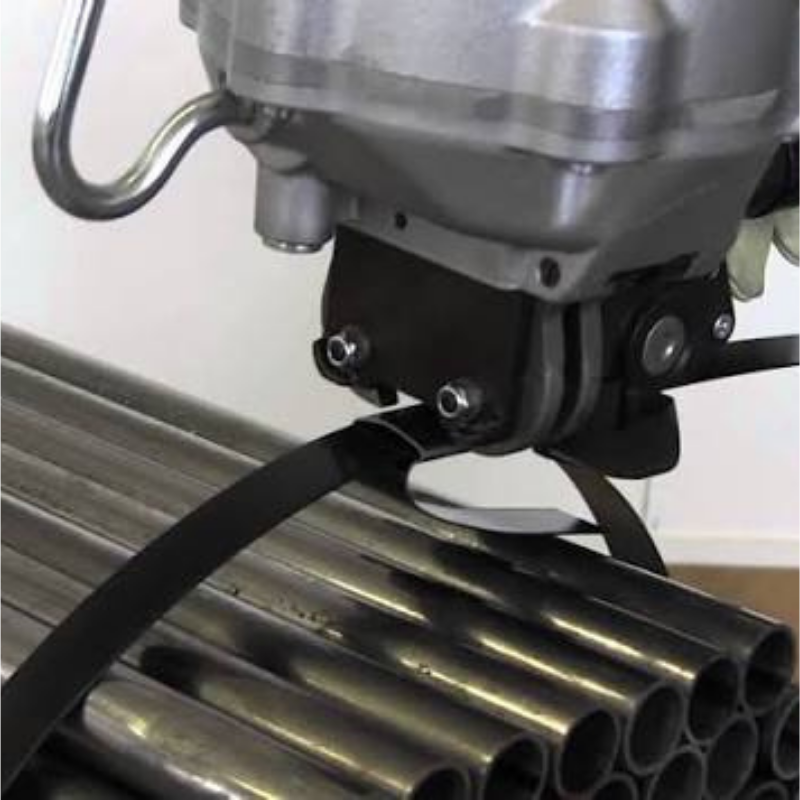

• Automatic Bundle Strapping Machine
• Touch Screen HMI Panel
• Barcode & Label Printing System
• Pipe Bundle Discharge Conveyor
• Remote Monitoring System

Advantages

• Reduces Manual Labour by up to 90%
• High Production Efficiency
• Accurate Pipe Counting
• Smooth & Scratch-Free Pipe Handling
• Faster Bundle Formation
• Safe Working Environment
• Heavy Duty Construction
• Long Service Life
• Low Maintenance Cost
• Easy Operation
• Energy Saving Design
• Suitable for 24×7 Continuous Production

Industries Served

• Steel Tube Manufacturing
• Pipe Processing Industries
• Automobile Industry
• Furniture Industry
• Construction Industry
• Infrastructure Projects
• Mechanical Engineering
• Fabrication Industries
• Industrial Equipment Manufacturers
